In this section we will explore logging that is already built into each and every Karbon cluster that is present.

Elastic Logging Kibana

In this lab, we will run through setting up logging with ELK Stack in your Karbon deployed kubernetes cluster using Helm. If you haven't setup Helm, use these Helm instructions to deploy it in your Linux Tools VM.

This setup will collect logs from all kubernets nodes deployed in Karbon kubernetes cluster.

All logs for kubernetes nodes (Master, ETCD and Workers) are collected by a separate instance of Elastisearch in the ntnx-system namespace. This is deployed by default in all Karbon kubernetes clusters.

In a production implementation make sure sufficient thought has been put in for design components of Elasticsearch in terms of:

  • Log retention which directly affects storage requirements
    • Physical Volumes (PV) - provisioned by Nutanix Volumes
    • In this implementation we will use a 30 GB PV (this is also customizable)
  • Log rotation
  • Namespace requirements for ELK - it is best to have a separate namespace for logging implementation and define resource boundaries

Access your Karbon Kubernetes Cluster

  1. Logon to your Prism Central https://<PC VM IP>:9440

    Note

    If you haven't got a Karbon deployed kubernetes cluster in your HPOC, refer here to create a kubernetes cluster in Nutanix.

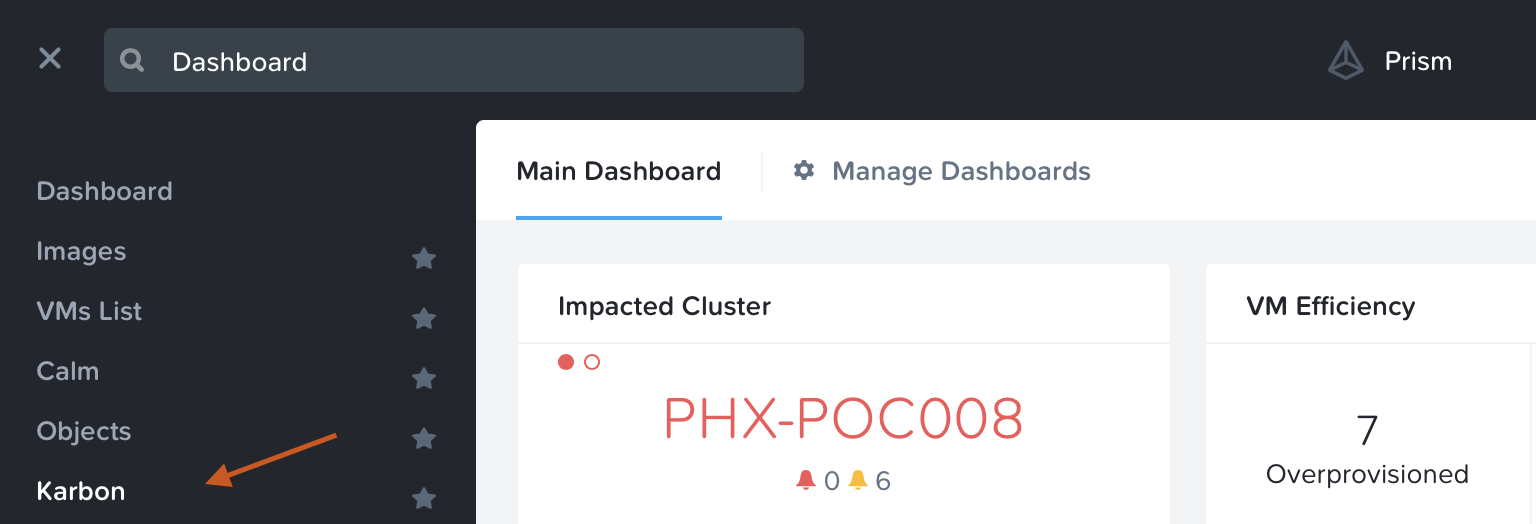

  2. Go to Menu > Services > Karbon

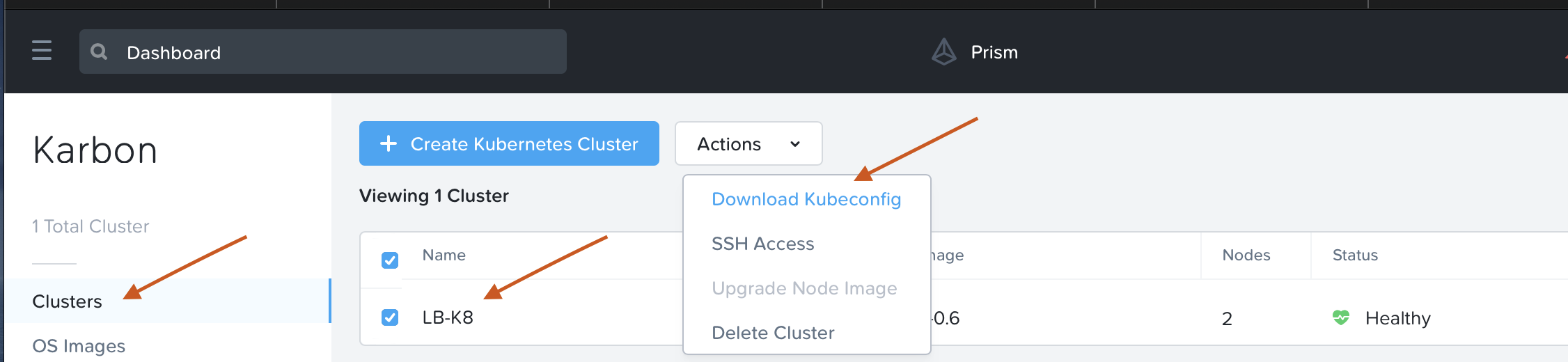

  3. Select your Karbon cluster

  4. Click on Actions > Download Kubeconfig

  5. Click on Copy the command to clipboard

  6. Paste the contents in your Linux Tools VM shell

  7. Run the following command to verify your connectivity and display the nodes in the cluster

    alias 'k=kubectl'
k get nodes -o wide

  8. You can list the namespaces, storage claims, physical volumes and physical volume claims using the following commands

    k get ns
k get sc,pv,pvc -n ntnx-system
k get po -n ntnx-system
    You can see 80 GiB of space is allocated to collect all logs
    k get pvc -n ntnx-system
NAME                                                 STATUS   VOLUME                                     CAPACITY   ACCESS MODES   STORAGECLASS           AGE
elasticsearch-logging-data-elasticsearch-logging-0   Bound    pvc-cc122aa5-a283-4eee-8b8c-f2c323c84191   80Gi       RWO            default-storageclass   34m
prometheus-k8s-db-prometheus-k8s-0                   Bound    pvc-ac032a67-bed0-483c-920d-aa115e6a9dbe   30Gi       RWO            default-storageclass   30m
prometheus-k8s-db-prometheus-k8s-1                   Bound    pvc-40b91314-e534-4ba4-9e9e-2f37b431210c   30Gi       RWO            default-storageclass   30m

    Info

    Nutanix Karbon has automatically provisioned these kubernetes resources so it is ready to use. You have the option to provision additional storage claims, physical volumes, etc by using the Karbon console or using kubectl with YAML files

Access to Kibana Logging Portal

Access your Karbon Kubernetes Cluster

  1. Logon to your Prism Central https://<PC VM IP>:9440

    Note

    If you haven't got a Karbon deployed kubernetes cluster in your HPOC, refer here to create a kubernetes cluster in Nutanix.

  2. Go to Menu > Services > Karbon

  3. Select your Karbon cluster

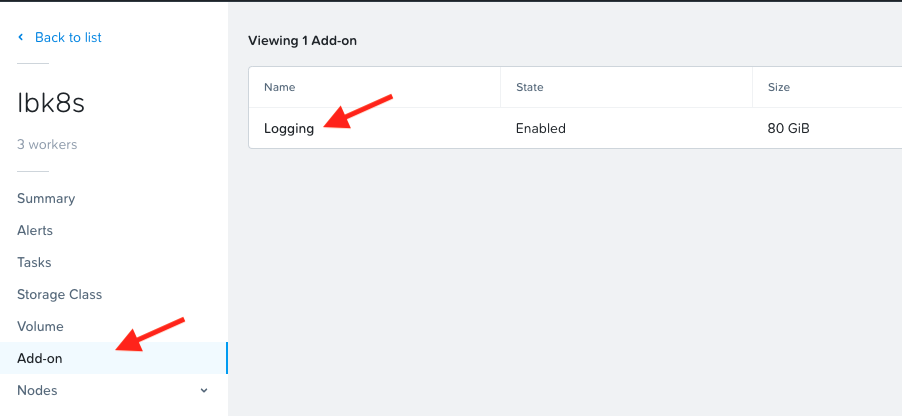

  4. Click on Add-on and select Logging

    This will open a new tab in your browser

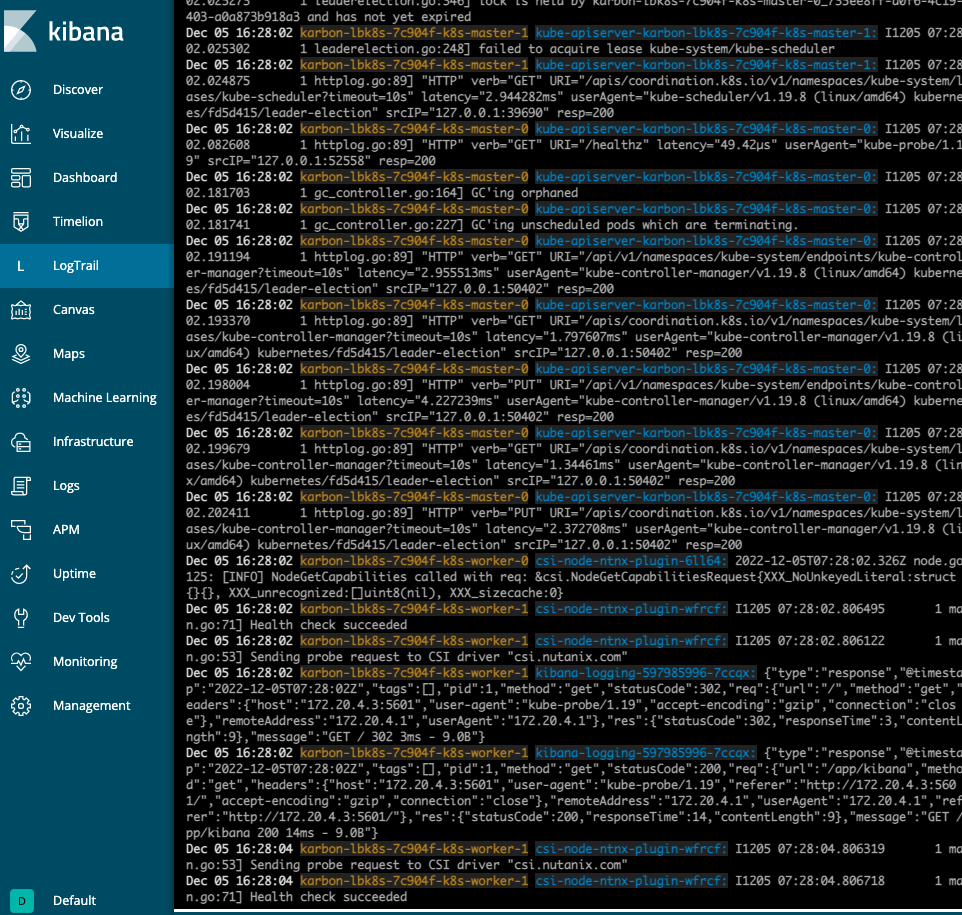

  5. In the Kibana tab, click on Log Trails

    Any Karbon deployed cluster will collect logs from kubernetes nodes

  6. Experiment with searching for some keywords in the logs.

Takeaways

  • Karbon comes with logging enabled using the ELK stack
  • Additional instances of ELK stack can be created to monitor additional deployed applications
